Description
Frameset
Frame

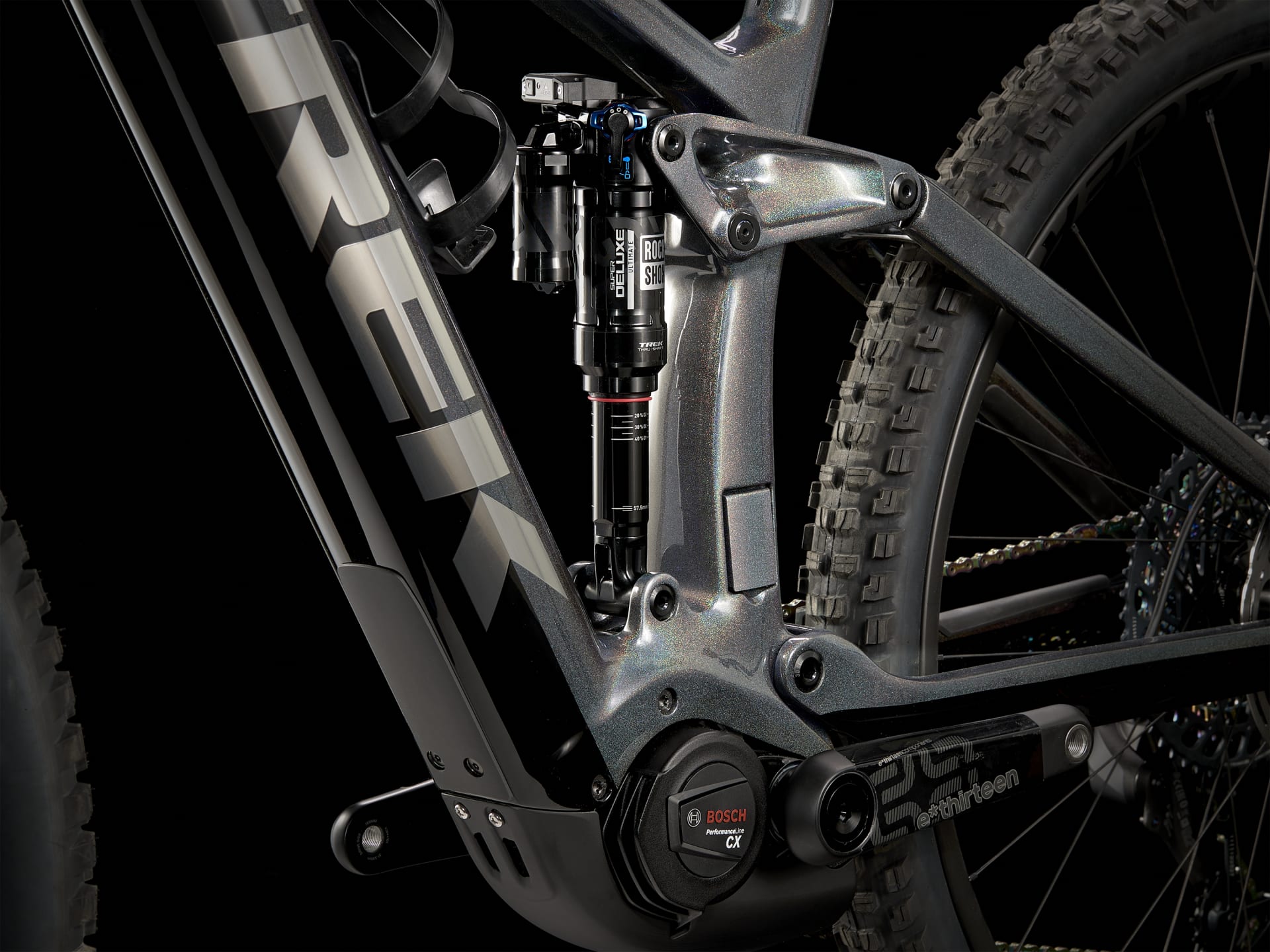

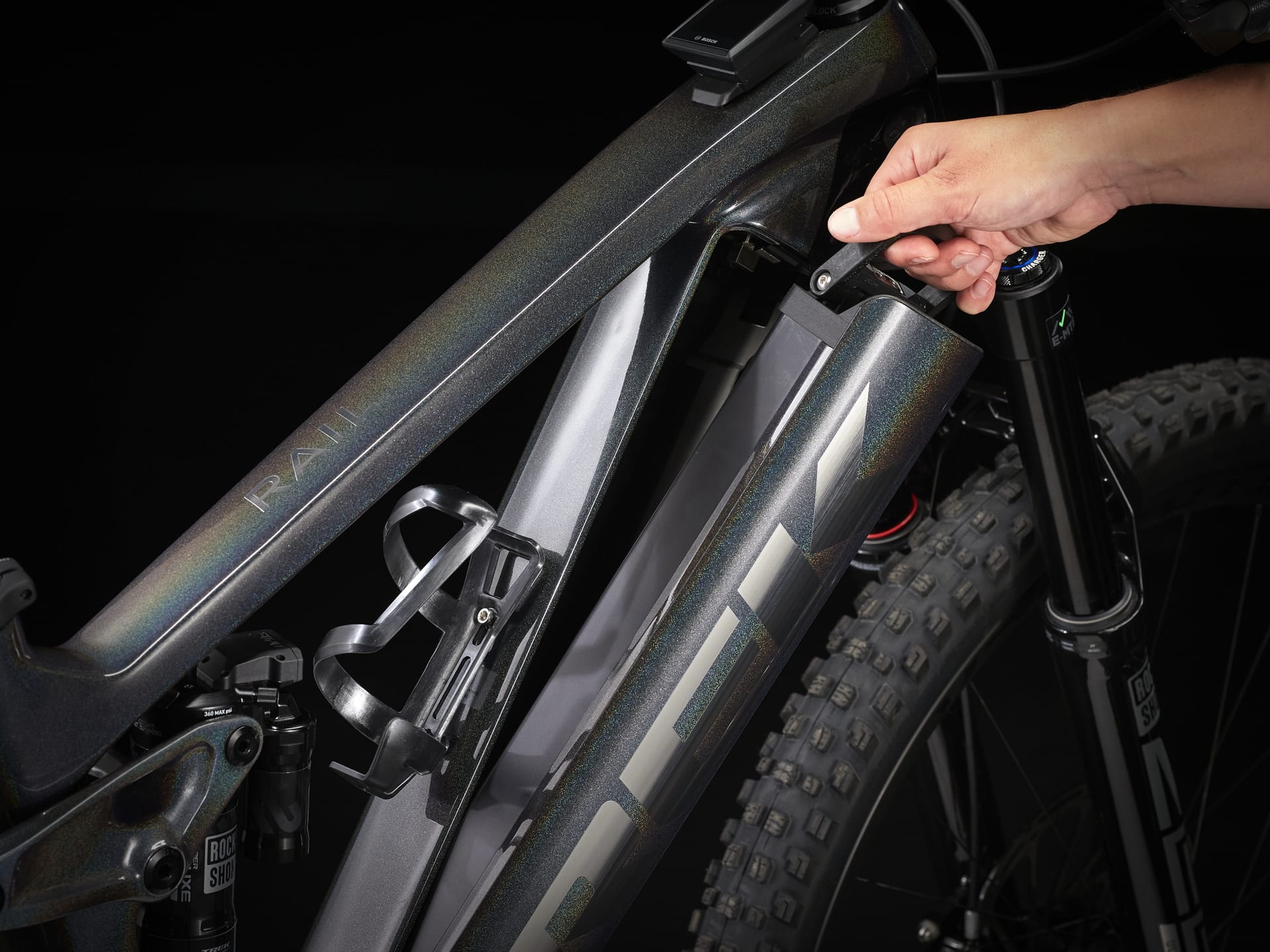

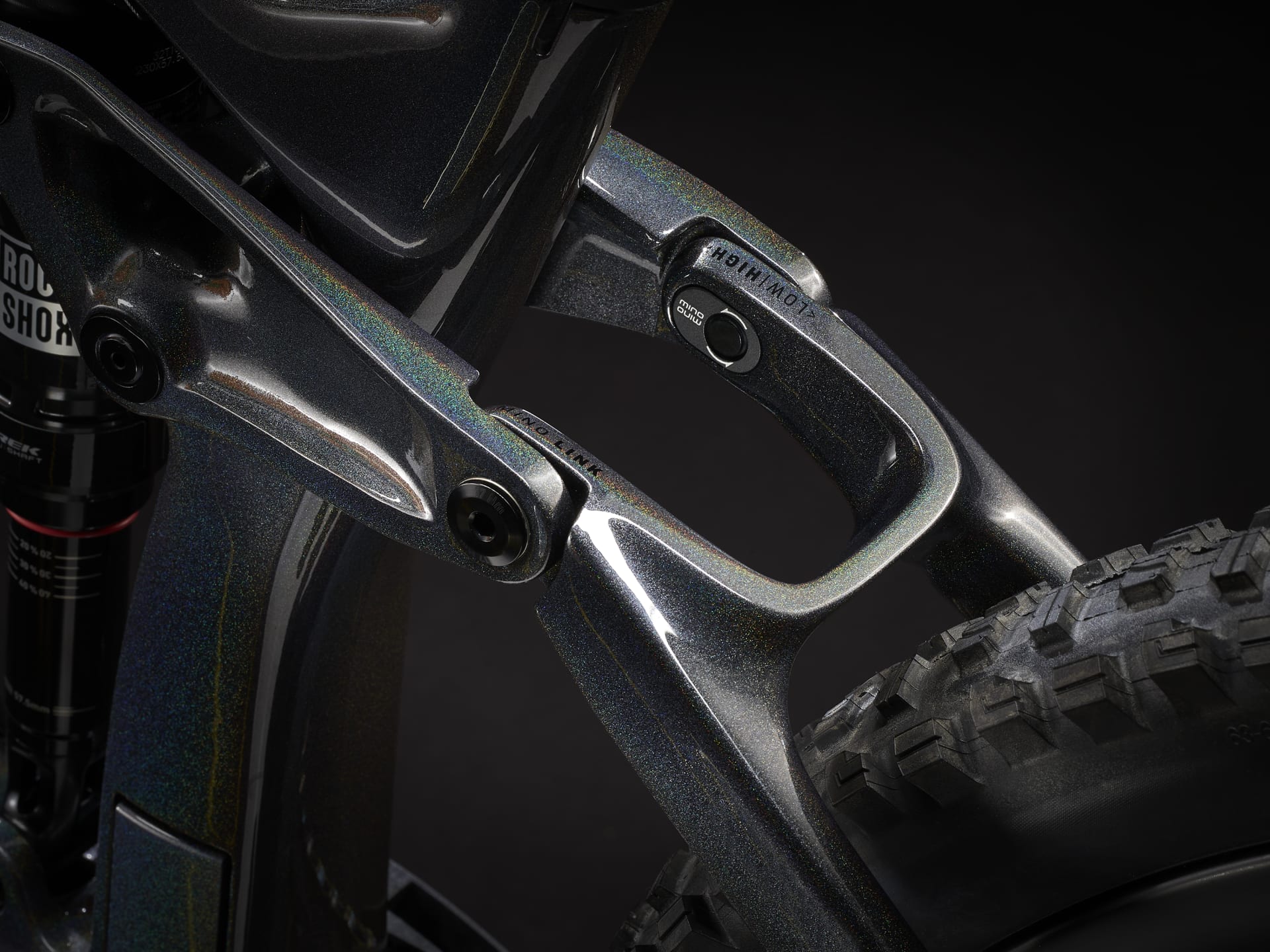

NEW OCLV Mountain Carbon main frame, 1.8″ lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork
RockShox ZEB Ultimate, AirWiz, DebonAir spring, Charger 2.1 RC2 damper, e-MTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
Max compatible fork travel
170mm (580mm axle-to-crown)
Wheels
Wheel front
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle
Wheel rear
Tyre
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50″
Max tyre size
Frame: 29×2.60″, Fork: See manufacturer
Drivetrain
Shifter
Size: M, L, XL
SRAM Eagle AXS, wireless, 12-speed
Size: M, L, XL
SRAM Eagle AXS, wireless, 12 speed
Rear derailleur
SRAM XX1 Eagle AXS
Crank
E*thirteen E*spec Race carbon, 165 mm length
Cassette
SRAM Eagle XG-1299, 10-52, 12-speed
Chain
SRAM XX1 Eagle, 12-speed
Max. chainring size
1x: 34T
Components
Saddle
Bontrager Arvada, austenite rails, 138 mm width
Seatpost
Size: M
RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm, 440 mm length
Size: L, XL
RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
Handlebar/stem
Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Brake
SRAM Code RSC hydraulic disc
Brake rotor
Size: M, L, XL
SRAM CenterLine, 6-bolt, round-edge, 180mm
Size: M, L, XL
SRAM CentreLine, 6-bolt, round edge, 200 mm
Accessories
Battery
Bosch PowerTube 750Wh, smart system
Weight
Weight
M – 22.54 kg / 49.7 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
